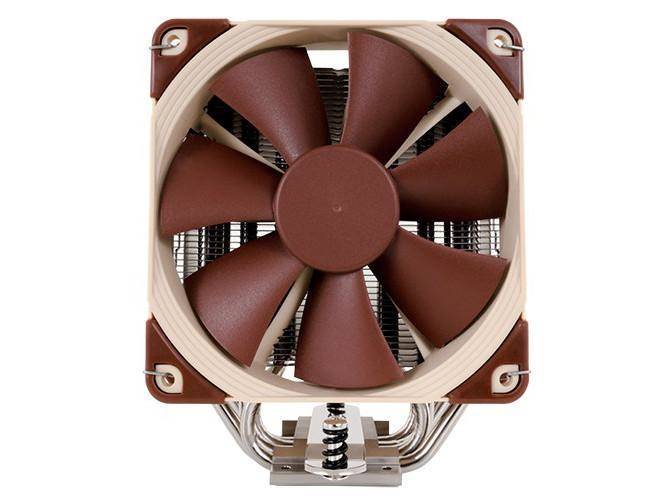

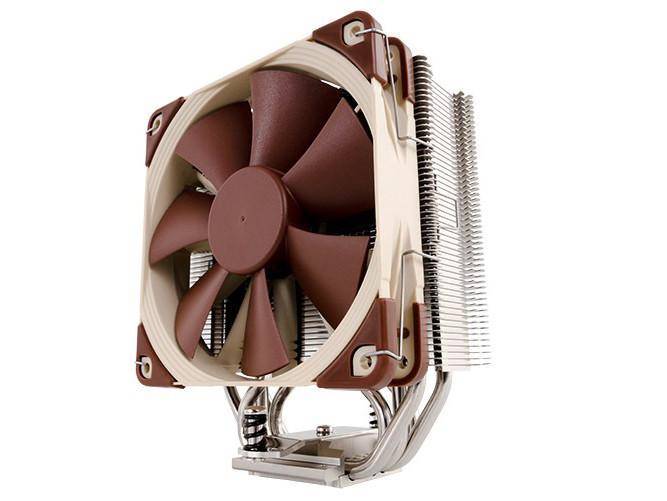

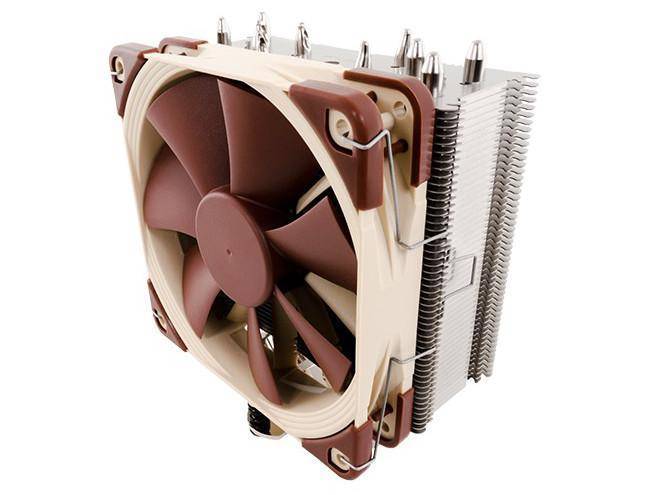

Noctua NH-U12S CPU Cooler

The NH-U12S is the latest model of Noctua's classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press.

The S-version's 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 FocusedFlow fan with PWM support for fully automatic speed control allow it to further improve its predecessor's renowned quiet cooling performance.

Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system, Noctua's proven NT-H1 thermal compound and full 6 years manufacturer's warranty, the NH-U12S is a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.

Specifications:
Socket compatibility: Intel LGA2066, LGA2011 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)
Height (without fan): 158 mm
Width (without fan): 125 mm
Depth (without fan): 45 mm
Weight (without fan): 580 grams
Height (with fan): 158 mm
Width (with fan): 125 mm
Depth (with fan): 71 mm
Weight (with fan): 755 grams
Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility: 120x120x25

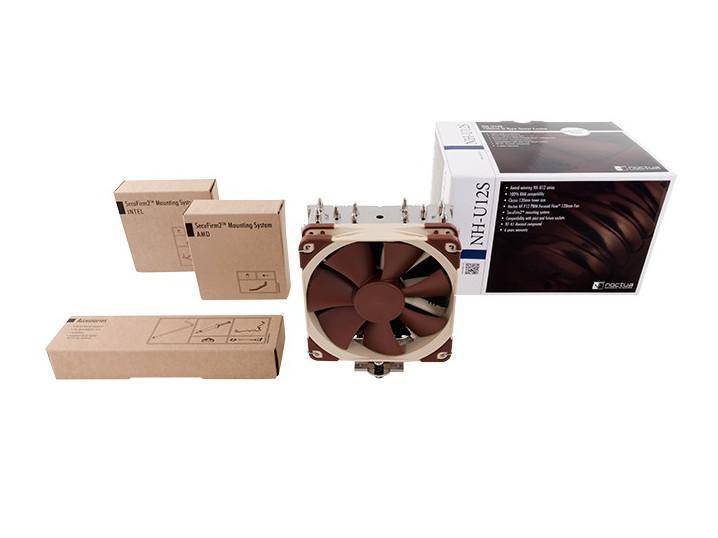

Package content:
1x NF-F12 PWM premium fan
1x Low-Noise Adaptor (L.N.A.)
1x NT-H1 high-grade thermal compound
1x SecuFirm2T Mounting Kit
1x Anti-vibration pads and fan-clips for second NF-F12
1x Noctua Metal Case-Badge

Fan:
Model: Noctua NF-F12 PWM
Bearing: SSO2
Max. Rotational Speed (+/- 10%) : 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%): 1200 RPM
Min. Rotational Speed (PWM): 300 RPM
Max. Airflow: 93,4 mü/h
Max. Airflow with L.N.A.: 74,3 mü/h
Max. Acoustical Noise: 22,4 dB(A)
Max. Acoustical Noise with L.N.A.: 18,6 dB(A)
Input Power: 0,6 W
Voltage Range: 12 V
