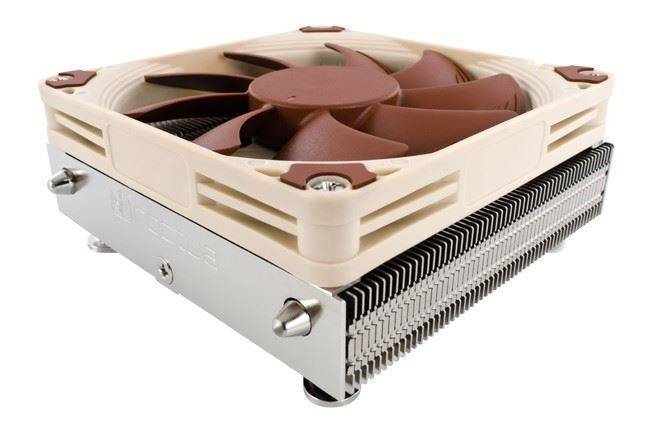

Noctua NH-L9i

Noctua NH-L9i är en högpresterande lågprofil CPU kylare, som lämpar sig för små datorlådor och HTPC.

NH-L9i levereras med 1 st. Noctuas egna super tystgående fläktar. 1 st. 92mm Noctua NF-A9x14 PWM fläkten.

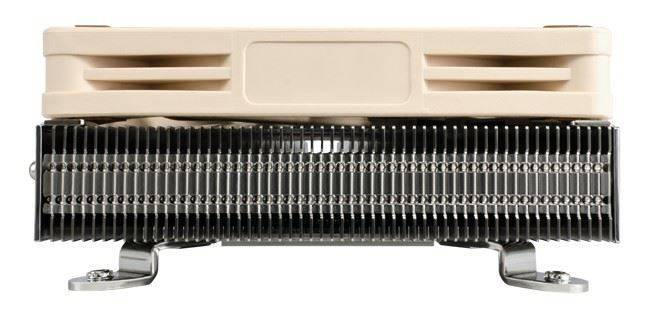

Noctua NH-L9i är en mycket kompakt kylare, som endast är 37mm hög inkl. fläkt monterad. Det gör den ytterst lämpad i små datorlådor eller HTPC!



Tillverkarens beskrivning:
The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. The custom designed SecuFirm2™ mounting system for LGA115x makes installation a child’s play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctua’s larger coolers into a super-compact package for slim HTPC systems.


Specifikationer:

Cooler Specifications:
Socket compatibility LGA1150, LGA1151, LGA1155, LGA1156
Height (without fan) 23 mm
Width (without fan) 95 mm
Depth (without fan) 95 mm
Height (with fan) 37 mm
Width (with fan) 95 mm
Depth (with fan) 95 mm
Weight (without fan) 345 g
Weight (with fan/s) 420 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP see TDP guide
Fan compatibility 92x92x14mm, 92x92x25mm

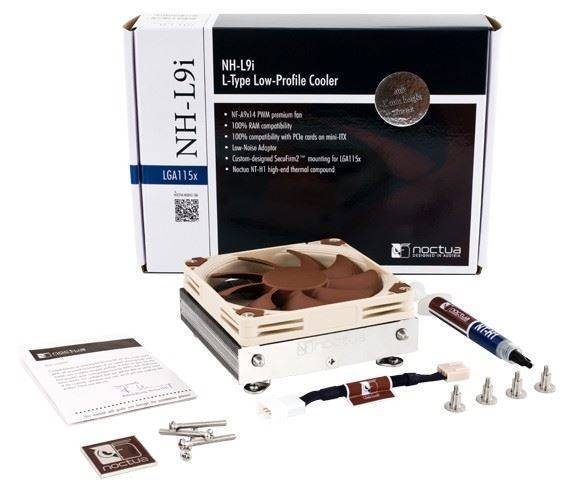

Scope of Delivery
NF-A9x14 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Screws for 92x92x25mm fans
Noctua Metal Case-Badge

FAN Specification:
Model Noctua NF-A9x14 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 2500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1800 RPM
Min. Rotational Speed (PWM, +/-20%) 600 RPM
Max. Airflow 57,5 m³/h
Max. Airflow with L.N.A. 40,8 m³/h
Max. Acoustical Noise 23,6 dB(A)
Max. Acoustical Noise with L.N.A. 14,8 dB(A)
Input Power 2,52 W
Voltage Range 12 V
MTBF > 150.000 h

Kompatibilitet:
Intel socket: 1150, 1151, 1155, 1156

Fläktar: 1 st. 92mm

Produkten innehåller:
Kylarprofil
1x NF-A9x14 premium fan
1x Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
Noctua Metal Case-Badge
Installationsvägledning

Vårt artikelnr:
00NO014
